Working with images stored in a SharePoint list column is a common scenario for Canvas Apps in Power Apps. In this guide, we’ll walk you through how to download images in SharePoint columns, directly from your Canvas App.
Use case description
Solution description

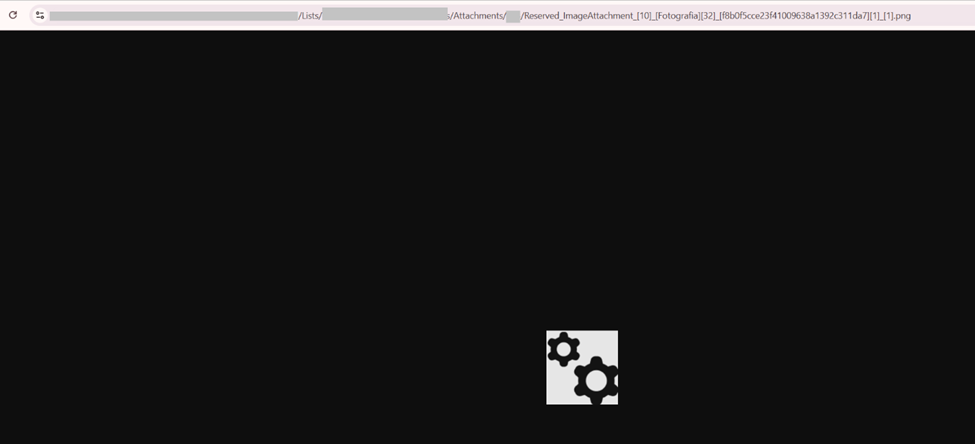

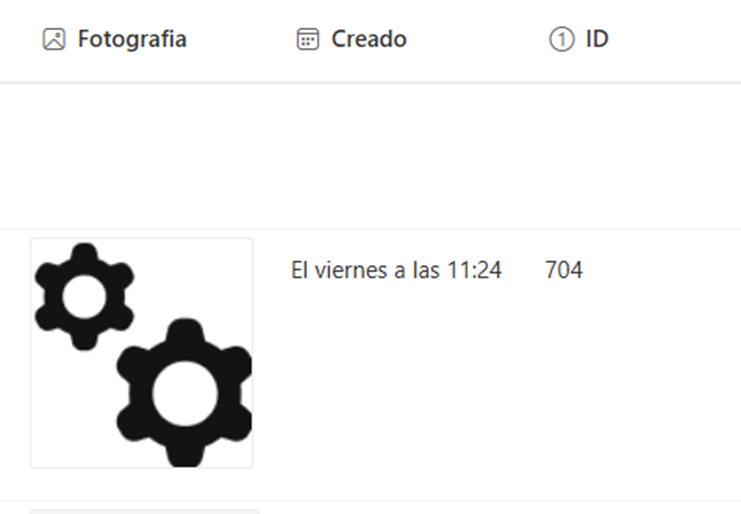

When we inspect the column in our SharePoint list and click on an image to view it in a separate browser tab this is the URL structure when viewing in the browser:
{SharePointSiteAndListAddress}/Attachments/{ItemID}/Reserved_ImageAttachment_%5B5%5D_%5B{ColumnName}%5D%5B36%5D_%5B{FileName}%5D%5B1%5D_%5B1%5D{FileType}

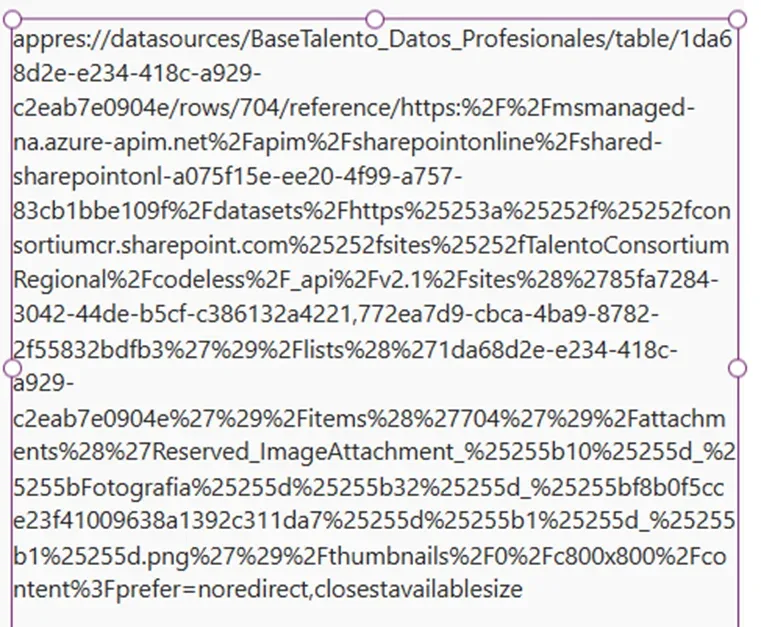

If we get the value of an image column in Power Apps, we get the following:

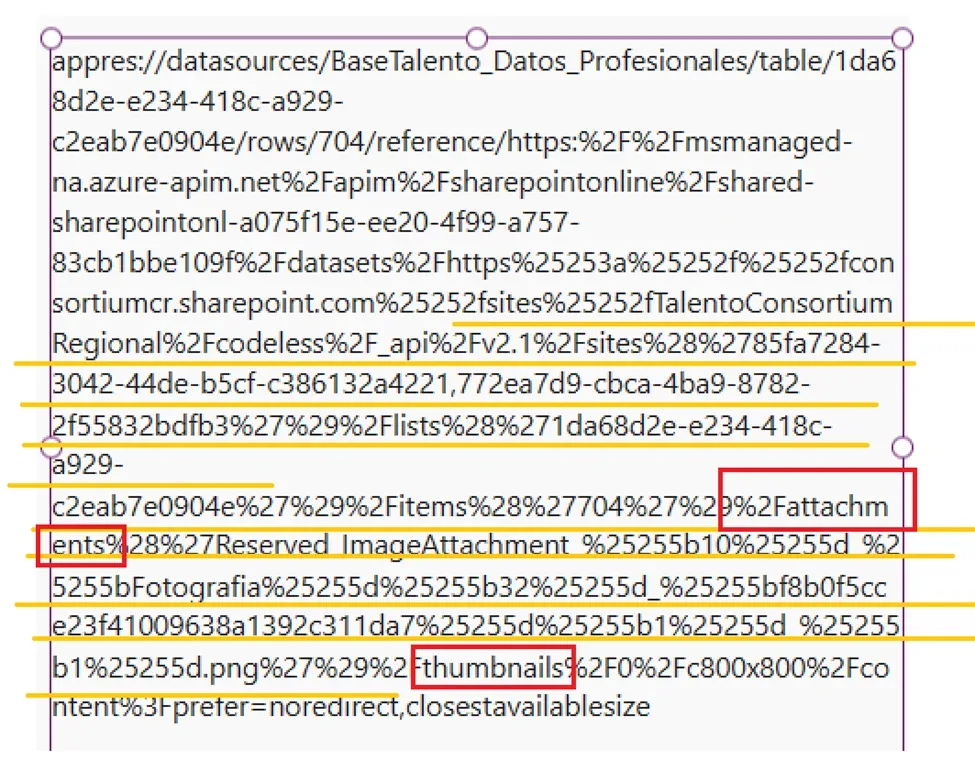

Note how in the middle of all the text, Power Apps uses the very same SharePoint URL format:
The
text we need is in between the key words:
·
attachments
·
thumbnails
Below is the code needed to
extract the URL and provide Power Apps a link to display the image and allow
user to download:
Download("https://wearepowergi.sharepoint.com/sites/BootcampDemos/Lists/UsuarioActuales_Marvin/Attachments/"&RecordsGallery1.Selected.ID&"/"&Substitute(
Substitute(
//extract image path
First(Split(Last(Split(RecordsGallery1.Selected.Fotografia.Full,"%2Fattachments%28%27")).Value,"%27%29%2Fthumbnails%")).Value,
//replace special characters.
"%25255b","["),
"%25255d","]"
)
)
Replace:
- SharePoint Address
- List Name
- ItemID
- Item and Column Name

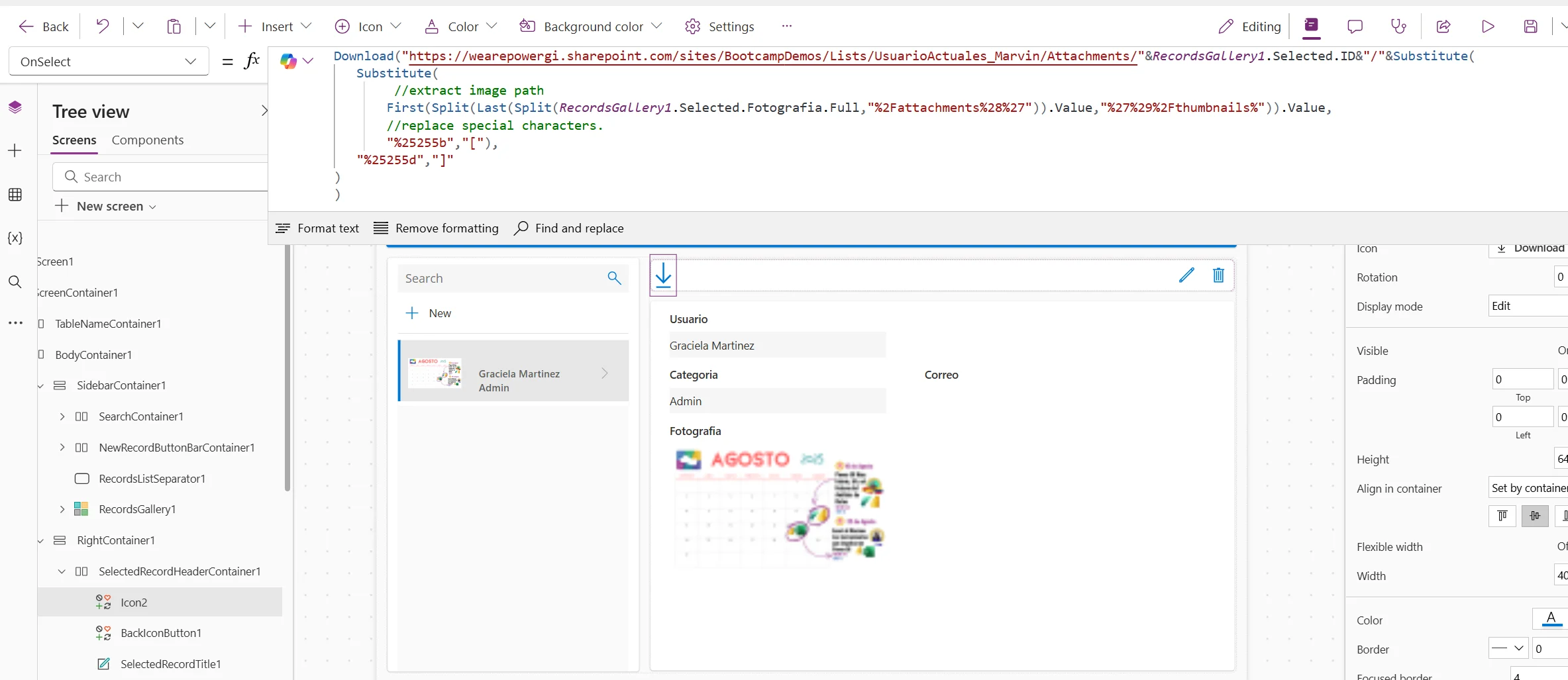

Add above code in the OnSelect action of the download button.

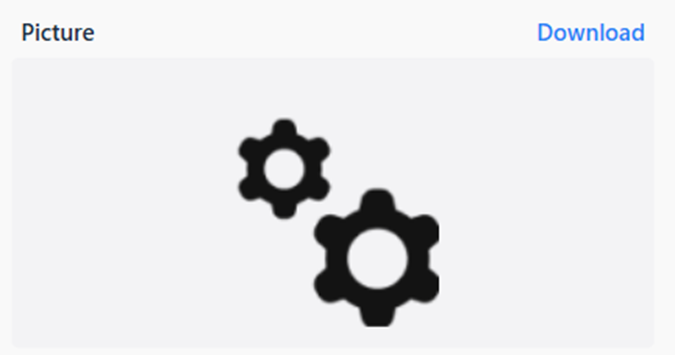

After this is done we can test and run the app to make sure all works properly!
